Demonstration Unit
We are proud to present our demonstration skid, which will be available from the beginning of 2019 for placement in your own factory.

This unit is a system to demonstrate RO pretreatment with ESR – HOD technology.
The unit produces 100-250 L/hr (adjustable) with no need for softeners or chemicals.



Downloadable information page



Chemical and Media Free PW/WFI Production System PFD

Standard configuration feed water specifications:

  • Total Hardness (as CaCO3) 100-250 ppm
  • Chlorides 10-100 ppm
  • Iron < 0.2 ppm
  • SDI < 3 ppm
  • Free Chlorine < 1.0 ppm
  • Chloramine < 0.25 ppm
  • Silica <10 ppm
  • Manganese <0.02 ppm
  • CO2 <20 ppm
  • Conductvity 200-700 µS/cm
  • pH 6.5 – 8.0

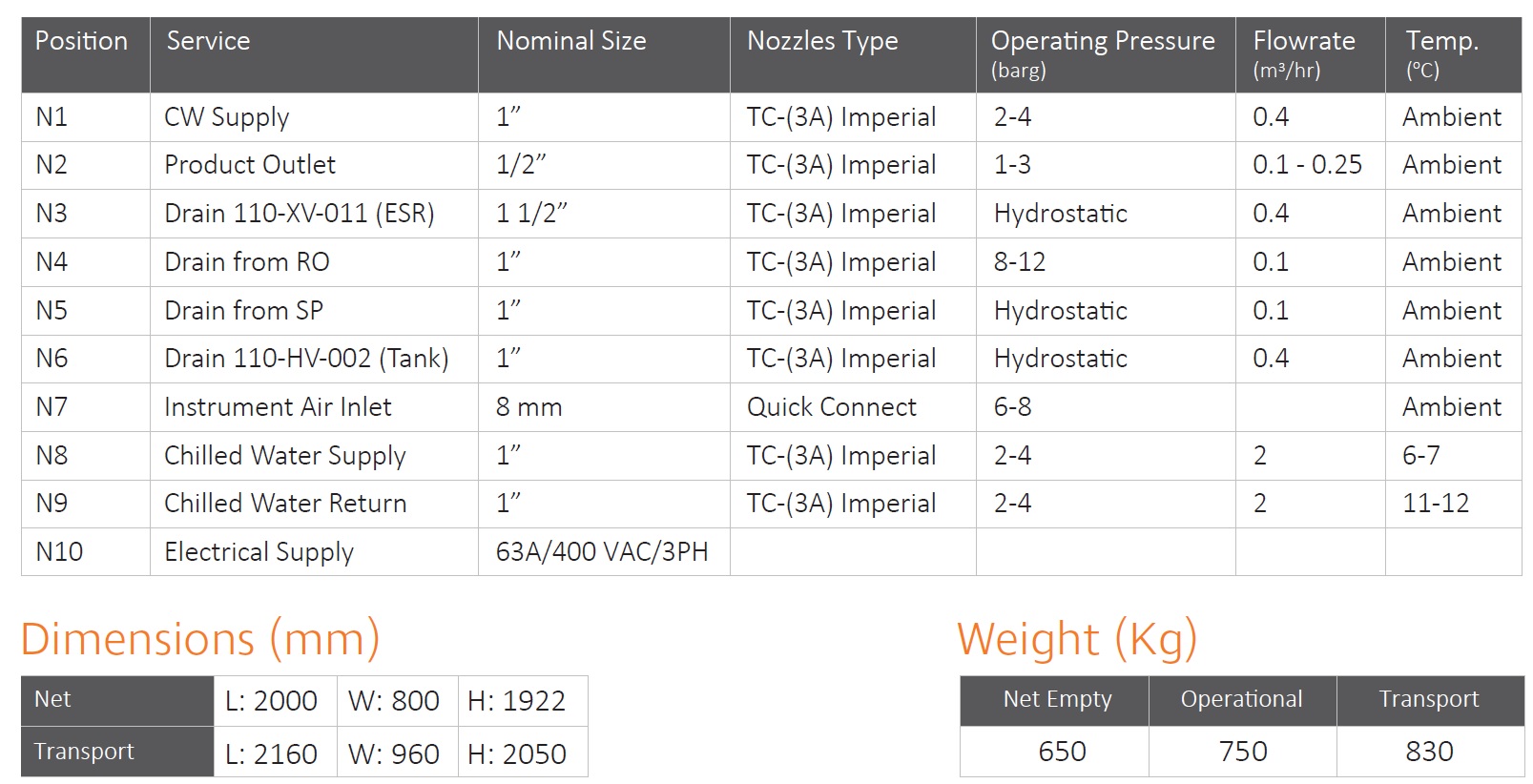

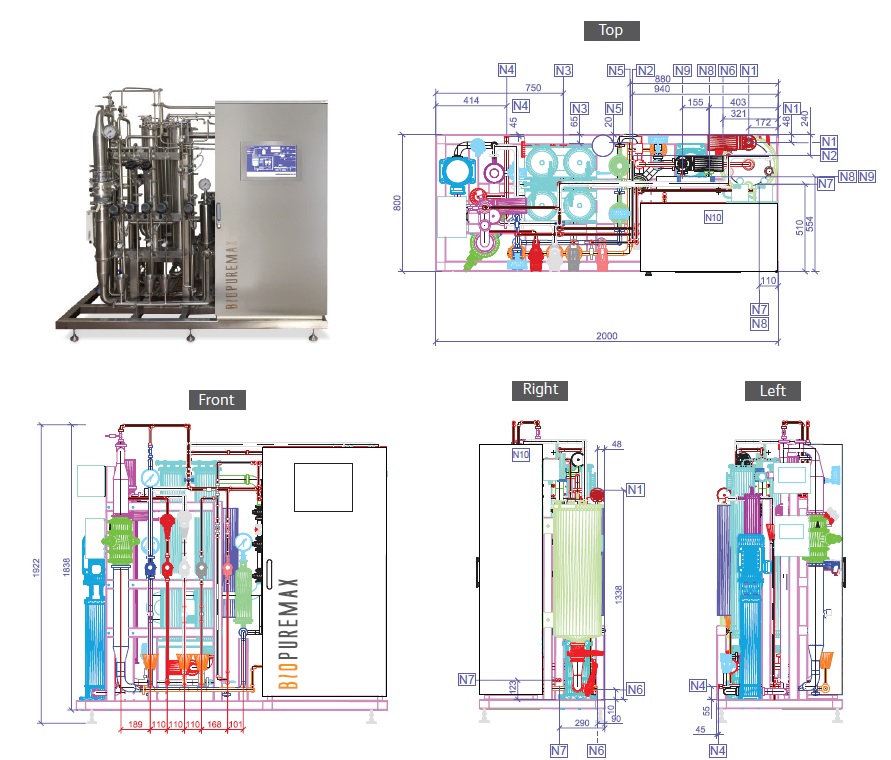

Views of Demonstration SkidSkid Connetions

PositonServiceConnecton SizeOperatng Pressure
(barg)
Flowrate
(m3/hr)
Temp.
(oC)
Connecton Type
N1CW Supply1”ASME BPE2-40.5Ambient
N2Product Outlet1/2”ASME BPE1-30.1 – 0.25Ambient
N3ESR Drain11/2”ASME BPEHydrostatc0.4Ambient
N4RO Drain1”ASME BPE8-120.1Ambient
N5Sample Point Drain1”ASME BPEHydrostatc0.1Ambient
N6Tank Drain1”ASME BPEHydrostatc0.4Ambient
N7Instrument Air Inlet8 mmQuick Connect6-81Ambient
N8Electrical Supply32A / 400 VACIEC 309 CEEAmbient

Dimensions (mm)

NetL: 2000W: 800H: 1922
TransportL: 2160W: 960H: 2050

Weight (Kg)

Net EmptyOperatonalTransport
650750830
